A grade custom size factory direct price BIPV translucent solar panel

  • >=1000 Watts
    $0.95
Material:
Monocrystalline Silicon Polycrystalline Silicon
Max. Power:
300W
Number of Cells:
36pcs/60pcs/72pcs
Samples:
Monocrystalline Silicon , 300W , 36pcs/60pcs/72pcs
$300.00 /Watt | 1 Watt (Min. Order) | Buy Samples
Shipping:
Support Sea freight
Customization:
Customized logo (Min. Order: 1000 Watts)
Graphic customization (Min. Order: 1000 Watts)

More

Customized packaging (Min. Order: 1000 Watts) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
FY-SOLAR
Model Number:
FY-BIPV
Type:
BIPV, double glass
Size:
Clients Requirment
Panel Efficiency:
30%,40%,50%,60%
Certificate:
TUV/CE/ISO, TUV/CE/ISO
Warranty:
10 Years, 10 Years
Junction Box:
IP65 Rated
Color:
Dark Blue
Connector:
MC4 Compatible Connector
Application:
Curtain Walls, clear/tinted/Reflective/Tempered/Laminated/Argon/Low-E
Transparent:
30%,40%,50%,60%
Thickness:
glass+1.52pvb+solar cell+glass
Frame:
frameless
Supply Ability
Supply Ability:
200000000 Watt/Watts per Year
Packaging & Delivery
Packaging Details
Solid wood cases suitable for sea and land transportation
Port
SHANGHAI/NINGBO
Product description

Product module type

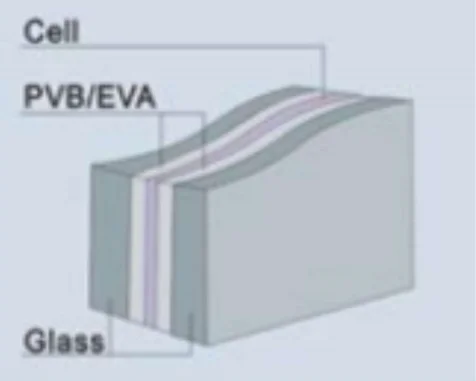

Conventional mezzanine module

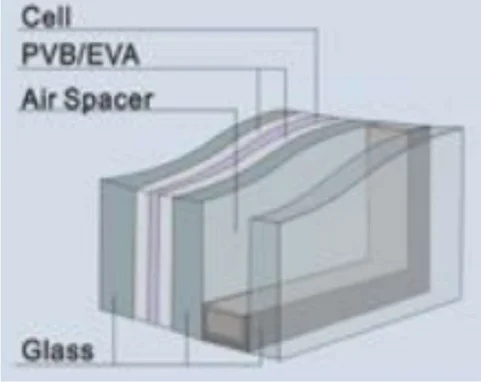

Hollow mezzanine module

Glass processing thickness:min:3.2mm max:12mm

Glass processing size:min:300mmx300mm
max:2500mmx2000mm

Structure and composition

glass Front glass: ultra-white float tempered glass Back glass: plain tempered glass
Cell Cell type: mono/poly Cell size: 125mm*125mm (mono) 156mm*156mm (polycrystalline/mono) And customizable cutting processing specifications
Laminated film Laminated intermediate film: PVB film for photovoltaic Features: Excellent structural safety performance indicators, high quality and low cost; High safety fire rating and good durability/weather resistance.

Shopping guide flowchart for the BIPV

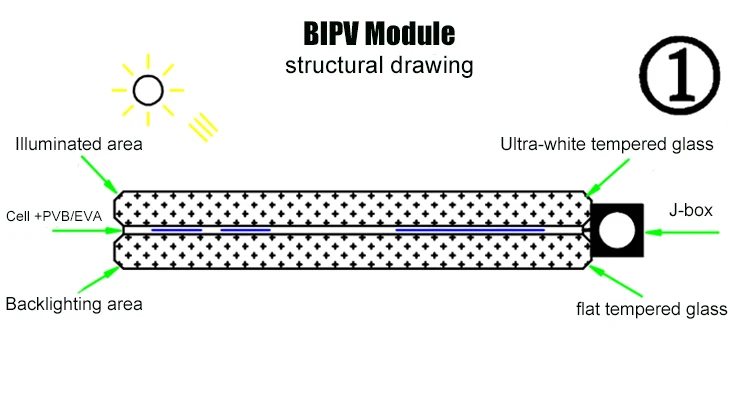

---If you not sure the bipv module component struture,please refer to the picture 1.please make sure the thickness of glass(illuminated area and backlighting area),the type of the cell,the max output,working voltage,and the trasparency

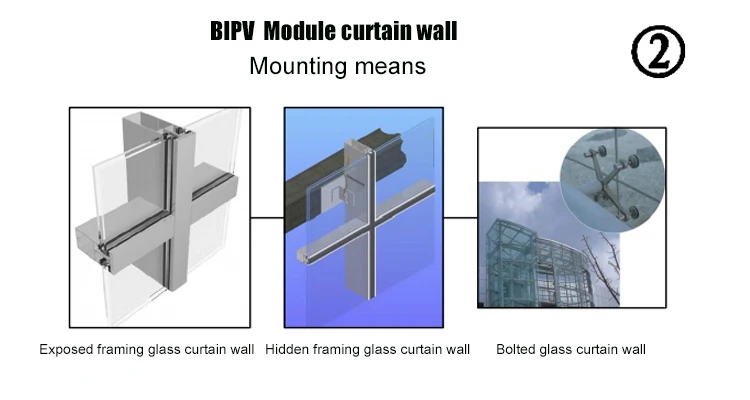

---Determines the mounting means,please refer to the picture 2

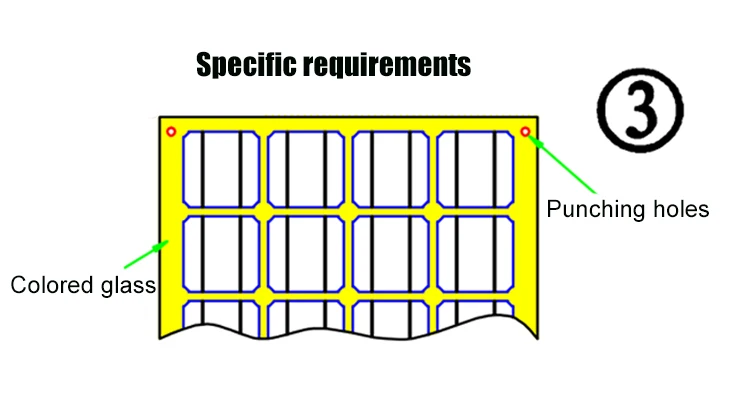

---If you have other requirement for glass(punching holes in the glass or glass coating)please refer to the picture 3

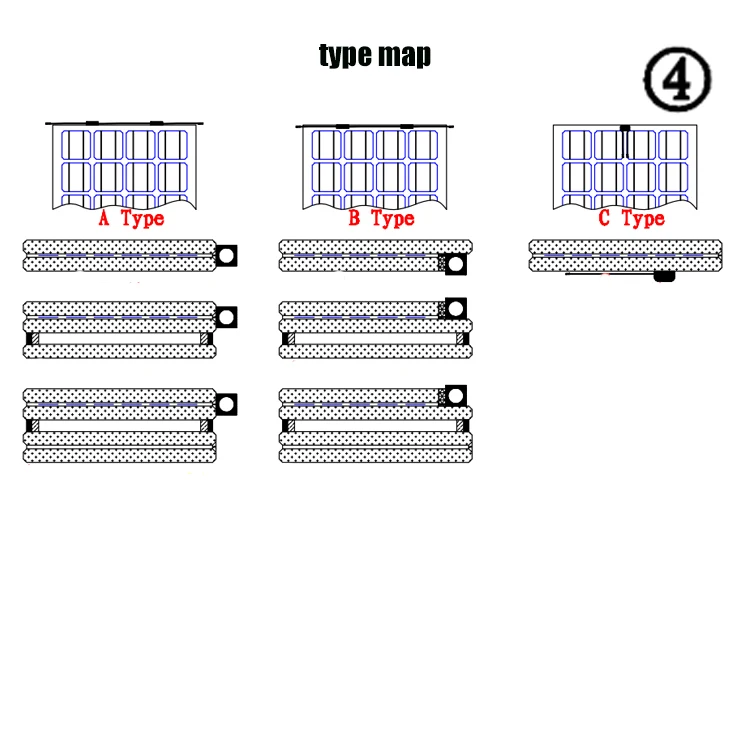

---If you not sure the j-box on the bipv module,please refer to the picture 4

Due to BIPV solar module is a customized product. So, before quotation, please confirm your requests as follow:

1.What thickness of glass do you need? available, 4mm, 5mm, 6mm, 8mm?
2.What size do you need? Max size is 1.5X2.5m?
3.What transparency do you need? generally, 30%-60%?
4.What's your quantity for each type of BIPV module requested?

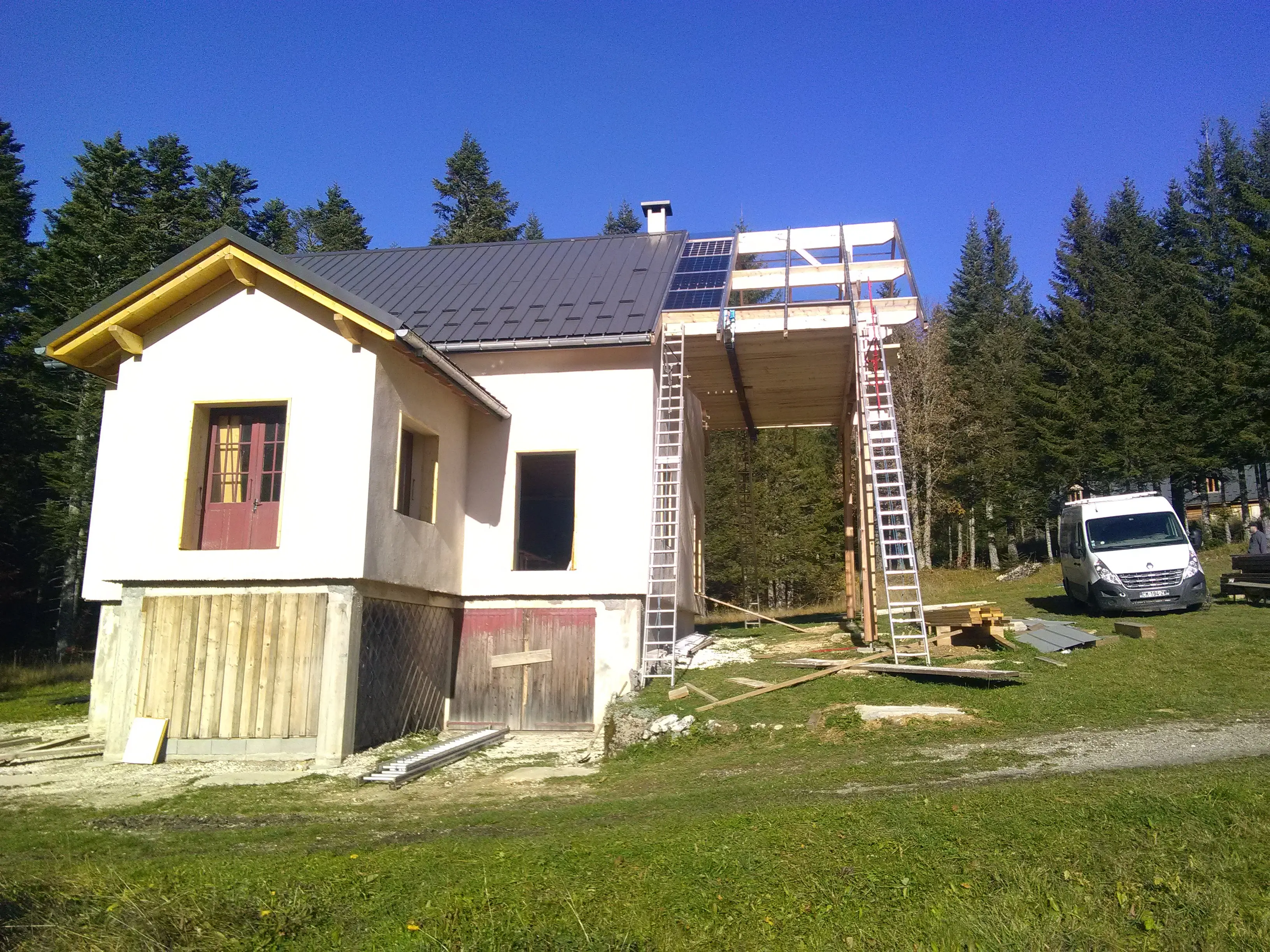

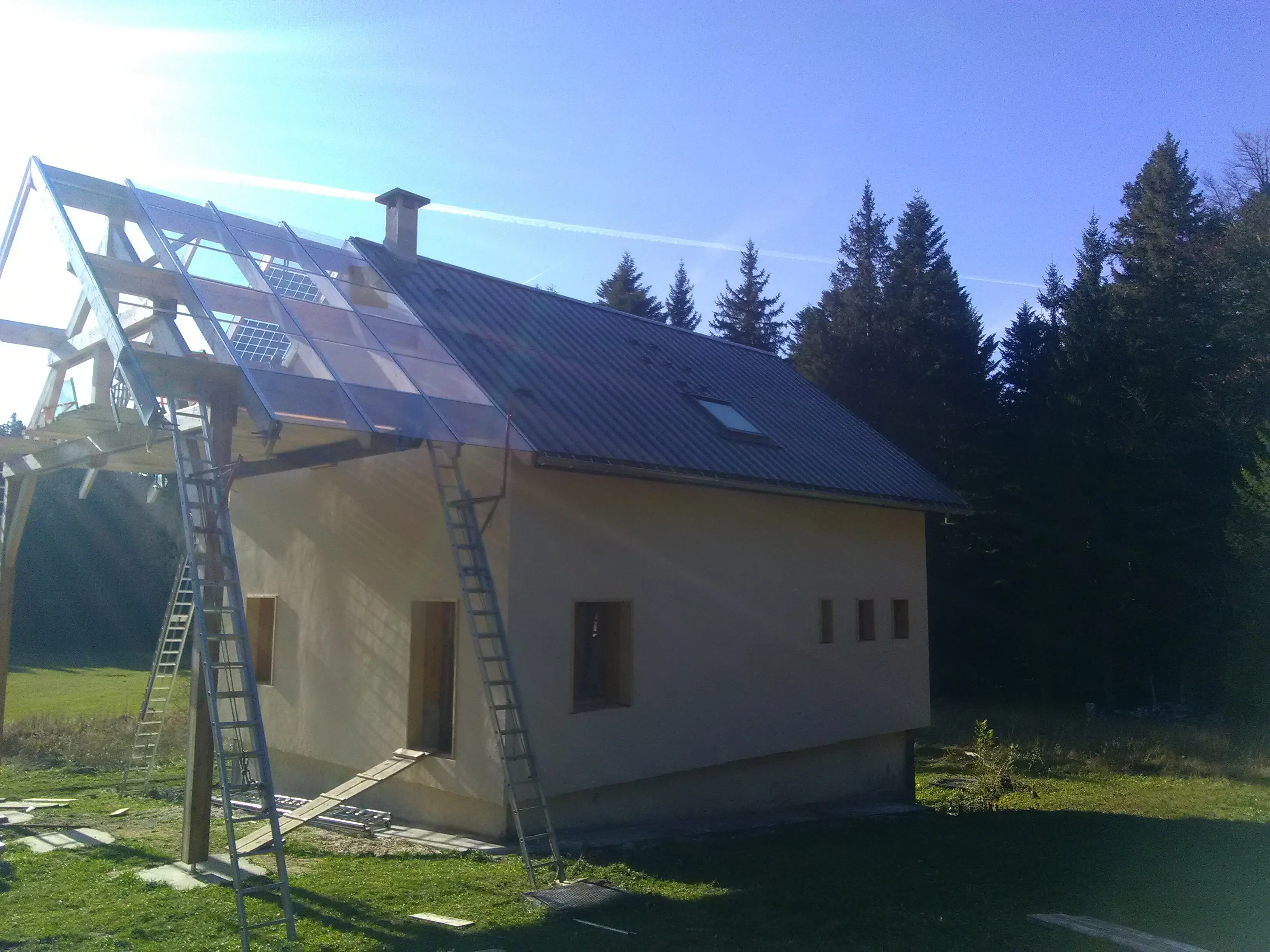

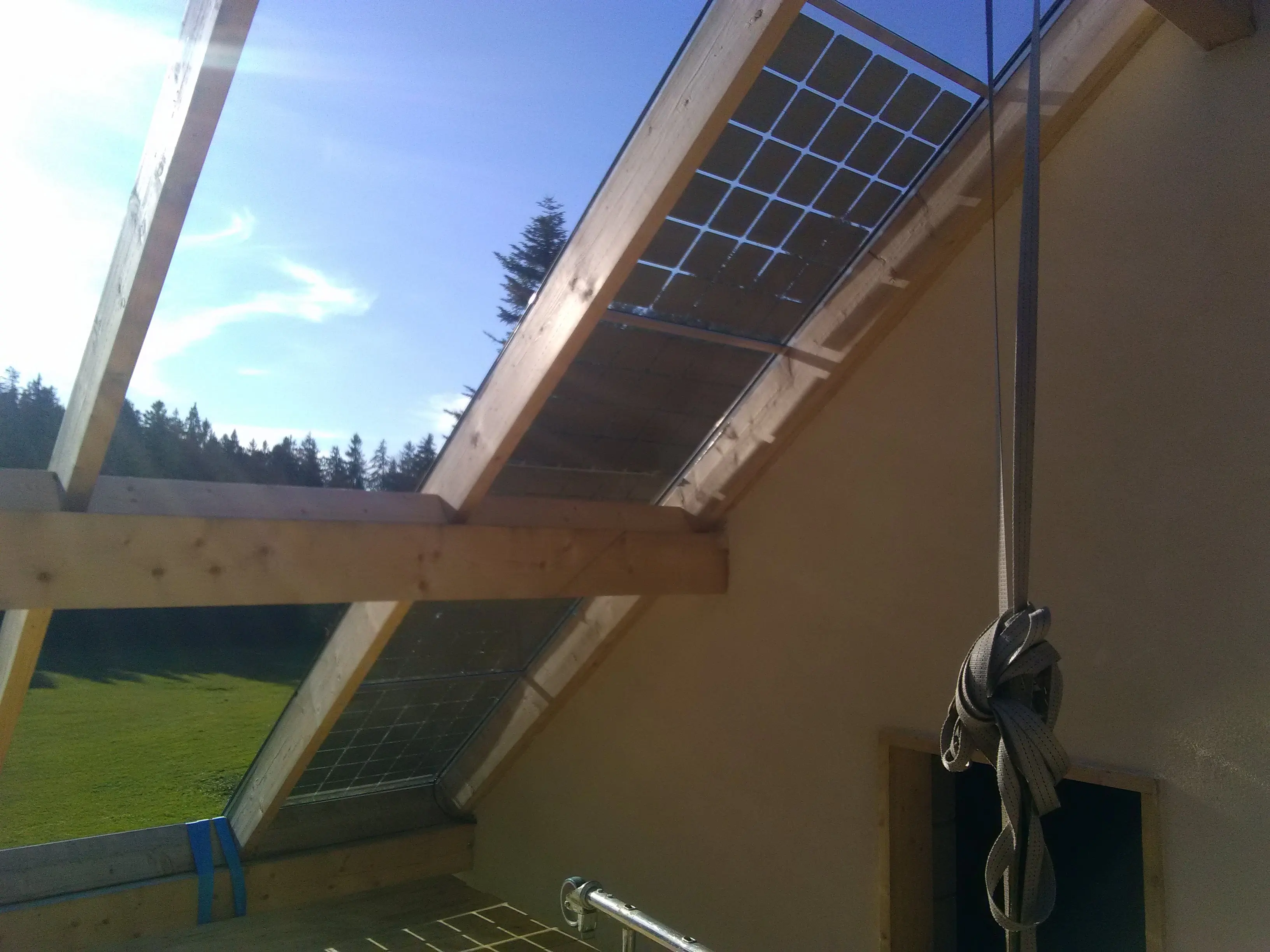

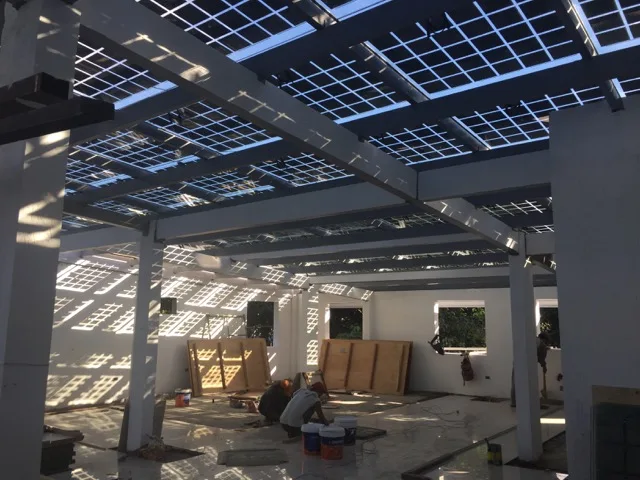

Applications
